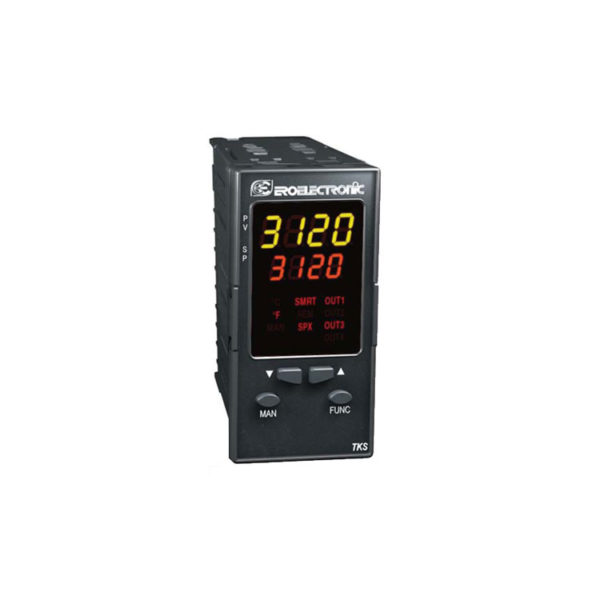

TKS Temperature / Process Controllers
Multifunction Controller (96×96 or 96×48 mm)
Designed to offer outstanding performance and provide a comprehensive solution for a wide variety of applications such as; food processing, plastic manufacturing, and process applications requiring heat/cool control process protection alarms.
Beschreibung
- Smart-Tune PID Control
- Input TC, 3 wire-RTD and linear
- CT Input – Load current monitoring
- 4 Relay/SSR Outputs
- Soft start-power limiter
- Process band, Deviation and Control fault alarms
- RS485 Modbus serial comms option
- OPC based graphical configuration
- IP65 and NEMA 4x Front protection
Spezifikation
| Eingangsart | mA, mV, Thermoelement, Volt, Widerstandsthermometer |
|---|---|
| Panel size (DIN) | 1/8 |
| PV Accuracy | |
| Digital OUT Relay/ SSR | |
| Digital IP/OP In | |
| IP Rating | IP65 |
| Display Type | 2 x 4 dig LED |
| Control Types | On/Off, PID |
| Alarm Types | Dev, Hallo, Lo, Sensor Break |
| Supply Voltage | 24V dc/ac, 85-264V ac |
| Digital Comms | RS485 Modbus |
