Description

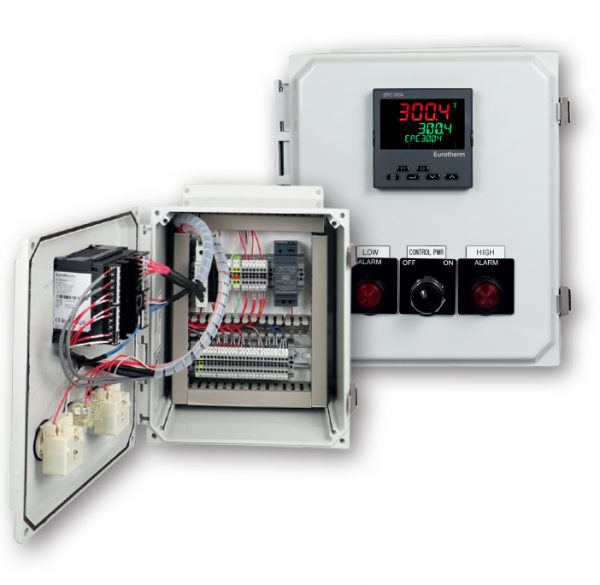

Industrial Control Panel
Benefits
- Industry-leading Eurotherm single loop precision PID control with input measurement accuracy of 0.1% of reading at 50ms sample rate •
- All I/O points are wired to an easily accessible industrial terminal strip

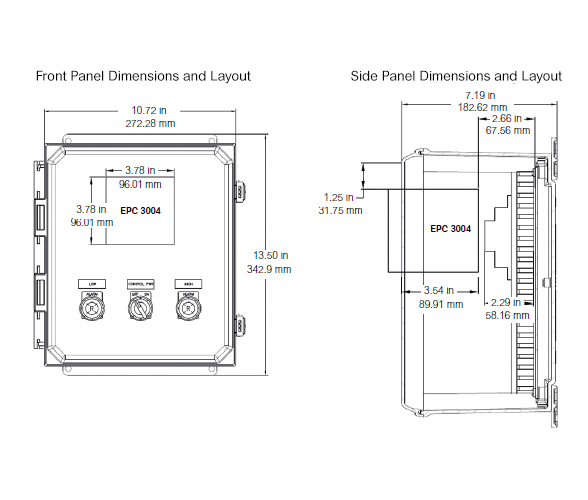

- Compact UL508A/cUL508A approved polycarbonate control panel, available in stainless steel upon request
- NEMA 4X enclosure, sealed for use in harsh environments and washdown applications
- Seamless building automation integration with native BACnet IP communication
Key Features
- Two universal analog inputs for temperature, pressure, flow, calculated values, etc.
- Two 4-20mA outputs, two relay outputs, one digital input
- Modbus RTU, Modbus TCP IP and BACnet IP Ethernet communications
- Ability to control two valve positioners in 1/3 : 2/3 mode
- High visibility customizable three-color controller display with scrolling text message display and dedicated beacons for easy visualization of alarm status.
- Front panel on/off power switch and two red alarm lights
- Pre-configured with a basic heating application using iTools configuration software. Simply enter setpoints and run the auto-tune function

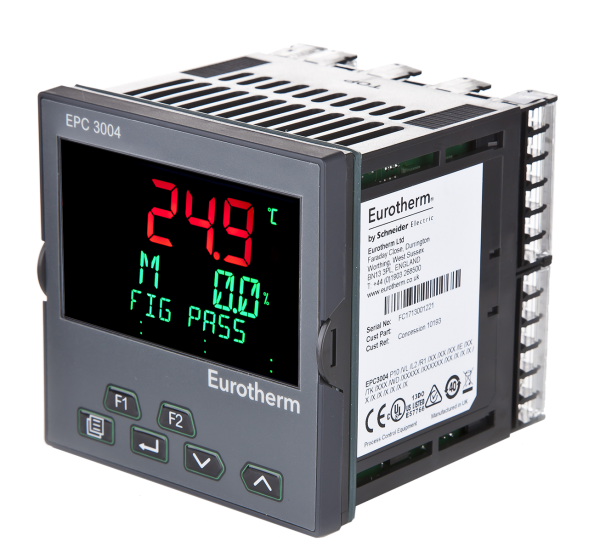

EPC3000 Programmable Controller
The EPC3000 range of programmable single loop process and temperature controllers maximizes efficiency and repeatability and is certified for cybersecurity communications robustness.
Accuracy and Repeatability
Process inputs are fast and accurate, with exceptional thermal stability, aiding precise and consistent control over long periods without calibration drift. Recalibration and user calibration correction functions are available to further improve accuracy.
The industry-leading Eurotherm PID algorithm delivers fast reacting and repeatable control and has been enhanced in the EPC3000 range to further reduce overshoot. Rapid rise to operating temperature and low oscillation helps improve yield. PID settings may be adjusted to suit specific process operating regions, helping deliver optimum performance.
Connectivity and Cybersecurity
The EPC3000 controller range is Ethernet enabled as standard and is the first Eurotherm controller to be designed and certified to meet the stringent cybersecurity requirements of Achilles® Communications Robustness Testing Level 1. Ethernet communications are supported via a standard RJ45 connector, providing fast access to process and diagnostic information as well as connectivity to external PLCs, SCADA systems and IIoT technologies.
Modbus RTU serial communication is also supported.
A free PC-based backup and configuration tool uses a USB connection, to power the instrument for convenient desktop configuration.
